Schneider Electric

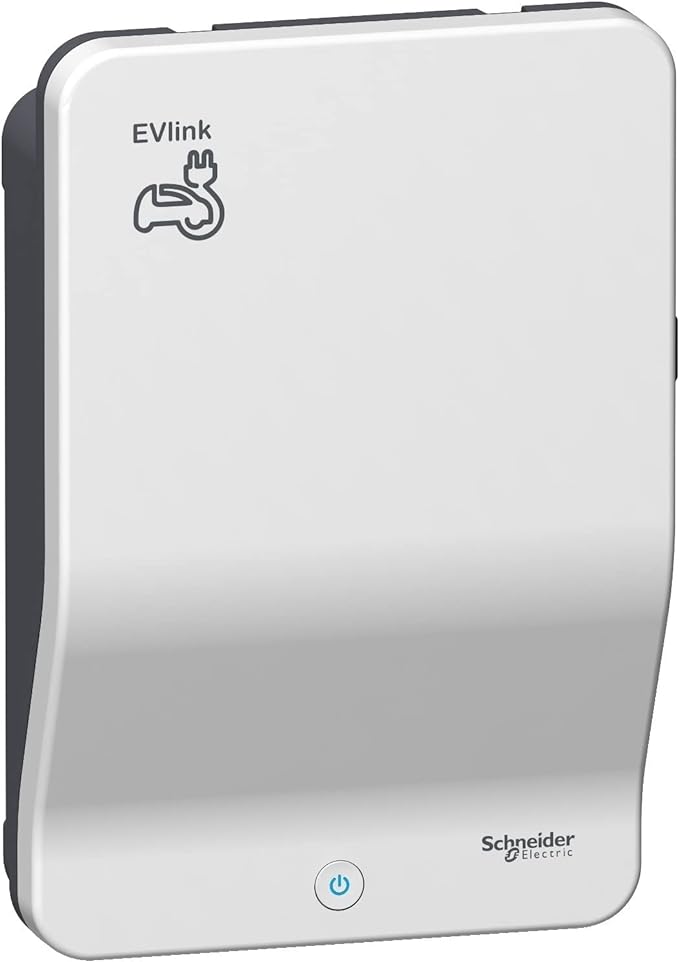

Evlink Charging Station

Charging stations for home or private properties (indoors or outdoors)
The EVlink Wallbox is weatherproof and robust. It can therefore be used in tough environments:in homes and on private properties (condominium, corporate carpark, hotel)



Quantity:
  • Features

Charge control
> Simply connect the vehicle to the charging station: charging can start without specific action.
> Charging can be stopped and then restarted using the Stop/Start button.
> The charging power can be limited by any energy management device providing that this device is able to close a potential-free contact wired to the Wallbox.

Characteristics of the power supply network
> 220-240 V single-phase - 50/60 Hz for 3.7 and 7.4 kW charging stations
> 380-415 V three-phase - 50/60 Hz for 11 and 22 kW charging stations
> Earthing system: TT, TN or IT

Mechanical and environmental characteristics
> Ingress protection code: IP54
> Impact protection code: IK10
> Operating temperature: -30°C to +50°C
> Activation Methods: Keylock or RFID card
